Nixplay Signage Specifications

Nixplay Small Format Signage 8 inch
Nixplay Small Format Signage 13.3 inch
Nixplay Signage 15.6 inch

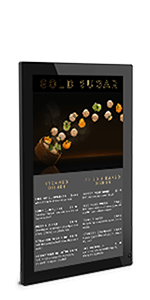

Nixplay Signage 21.5 inch

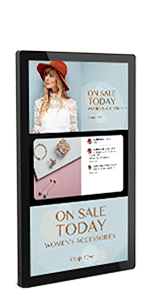

Nixplay Signage 24 inch
Nixplay Signage 32 inch
Nixplay Signage 43 inch
Nixplay Signage 55 inch

Size and Weight

Unit Dimensions:
186mm x 226mm x 34mm
Unit Dimensions:
9.92mm x 15.20mm x 1.42mm
Unit Dimensions:
388mm x 245mm x 27mm
Unit Dimensions:
538mm x 331mm x 22mm
Unit Dimensions:
580mm x 349mm x 19mm
Unit Dimensions:
750mm x 450mm x 25mm
Unit Dimensions:
987mm x 585.8mm x 55.6mm
Unit Dimensions:
1252.7mm x 736.8mm x 56.5mm
Net Weight:
0.40 kg (0.88 lbs)
Net Weight:
0.95kg (2.09lbs)
Net Weight:
1.36kg (3.00lbs)
Net Weight:
3.49kg (7.70lbs)
Net Weight:
4.95kg (10.91lbs)
Net Weight:
7.77kg (17.13lbs)
Net Weight:
21.80kg (48.07lbs)
Net Weight:
35.20kg (77.62lbs)
Gross Unit Weight:
0.96 kg (2.11 lbs)
Gross Unit Weight:
1.65kg (3.64lbs)
Gross Unit Weight:
2.24kg (4.94lbs)
Gross Unit Weight:
4.67kg (10.30lbs)
Gross Unit Weight:
6.77kg (14.93lbs)
Gross Unit Weight:
10.80kg (23.81lbs)
Gross Unit Weight:
25.3kg (55.79lbs)
Gross Unit Weight:
41.2kg (90.85lbs)

Display

Panel Resolution:
1024 x 768 pixels IPS
Panel Resolution:
1920 x 1080 pixels IPS
Panel Resolution:
1920 x 1080 pixels IPS
Panel Resolution:
1920 x 1080 pixels IPS
Panel Resolution:
1920 x 1080 pixels IPS
Panel Resolution:
1920 x 1080 pixels IPS
Panel Resolution:
1920 x 1080 pixels IPS
Panel Resolution:
1920 x 1080 pixels IPS
Display Dimensions:
162 mm x 120 mm
Display Dimensions:
295 mm x 165 mm
Display Dimensions:
345mm x 194mm
Display Dimensions:
474 mm x 265 mm
Display Dimensions:
527 mm x 297 mm
Display Dimensions:
699 mm x 394 mm
Display Dimensions:
940 mm x 528 mm
Display Dimensions:
1207 mm x 678 mm

Flash Memory

8GB
16GB
16GB
16GB
16GB
16GB
16GB
16GB

DDR

1GB
1GB
2GB
2GB
2GB
2GB
2GB
2GB

Wi-Fi

802.11ac – 2.4GHz / 5 GHz
802.11ac – 2.4GHz / 5 GHz
802.11ac – 2.4GHz / 5 GHz
802.11ac - 2.4 GHz / 5 GHz
802.11ac - 2.4 GHz / 5 GHz
802.11ac - 2.4 GHz / 5 GHz
802.11ac - 2.4 GHz / 5 GHz
802.11ac - 2.4 GHz / 5 GHz

HDMI Out

N/A
N/A
Yes
Yes
Yes
Yes
Yes
Yes

Power Adapter Spec

5V 1.0A
12V 1.0A
12V 3A
12V 3A
12V 4A
12V 5A
N/A
N/A

Ethernet

N/A
N/A
Yes (1000 BASE-T-1Gbit)
Yes (1000 BASE-T-1Gbit)
Yes (1000 BASE-T-1Gbit)
Yes (1000 BASE-T-1Gbit)
Yes (1000 BASE-T-1Gbit)
Yes (1000 BASE-T-1Gbit)

Nixplay Small Format Signage 8 inch

Size and Weight
186mm x 226mm x 34mm 0.40 kg (0.88 lbs) 0.96 kg (2.11 lbs)
Display
1024 x 768 pixels IPS 162 mm x 120 mm
8GB 1GB 802.11ac – 2.4GHz / 5 GHz N/A
5V 1.0A N/A

Nixplay Small Format Signage 13.3 inch

Size and Weight
9.92mm x 15.20mm x 1.42mm 0.95kg (2.09lbs) 1.65kg (3.64lbs)
Display
1920 x 1080 pixels IPS 295 mm x 165 mm
16GB 1GB 802.11ac – 2.4GHz / 5 GHz N/A
12V 1.0A N/A

Nixplay Signage 15.6 inch

Size and Weight
388mm x 245mm x 27mm 1.36kg (3.00lbs) 2.24kg (4.94lbs)
Display
1920 x 1080 pixels IPS 345mm x 194mm
16GB 2GB 802.11ac – 2.4GHz / 5 GHz Yes
12V 3A Yes (1000 BASE-T-1Gbit)

Nixplay Signage 21.5 inch

Size and Weight
538mm x 331mm x 22mm 3.49kg (7.70lbs) 4.67kg (10.30lbs)
Display
1920 x 1080 pixels IPS 474 mm x 265 mm
16GB 2GB 802.11ac - 2.4 GHz / 5 GHz Yes
12V 3A Yes (1000 BASE-T-1Gbit)

Nixplay Signage 24 inch

Size and Weight
580mm x 349mm x 19mm 4.95kg (10.91lbs) 6.77kg (14.93lbs)
Display
1920 x 1080 pixels IPS 527 mm x 297 mm
16GB 2GB 802.11ac - 2.4 GHz / 5 GHz Yes
12V 4A Yes (1000 BASE-T-1Gbit)

Nixplay Signage 32 inch

Size and Weight
750mm x 450mm x 25mm 7.77kg (17.13lbs) 10.80kg (23.81lbs)
Display
1920 x 1080 pixels IPS 699 mm x 394 mm
16GB 2GB 802.11ac - 2.4 GHz / 5 GHz Yes
12V 5A Yes (1000 BASE-T-1Gbit)

Nixplay Signage 43 inch

Size and Weight
987mm x 585.8mm x 55.6mm 21.80kg (48.07lbs) 25.3kg (55.79lbs)
Display
1920 x 1080 pixels IPS 940 mm x 528 mm
16GB 2GB 802.11ac - 2.4 GHz / 5 GHz Yes
N/A Yes (1000 BASE-T-1Gbit)

Nixplay Signage 55 inch

Size and Weight
1252.7mm x 736.8mm x 56.5mm 35.20kg (77.62lbs) 41.2kg (90.85lbs)
Display
1920 x 1080 pixels IPS 1207 mm x 678 mm
16GB 2GB 802.11ac - 2.4 GHz / 5 GHz Yes
N/A Yes (1000 BASE-T-1Gbit)
